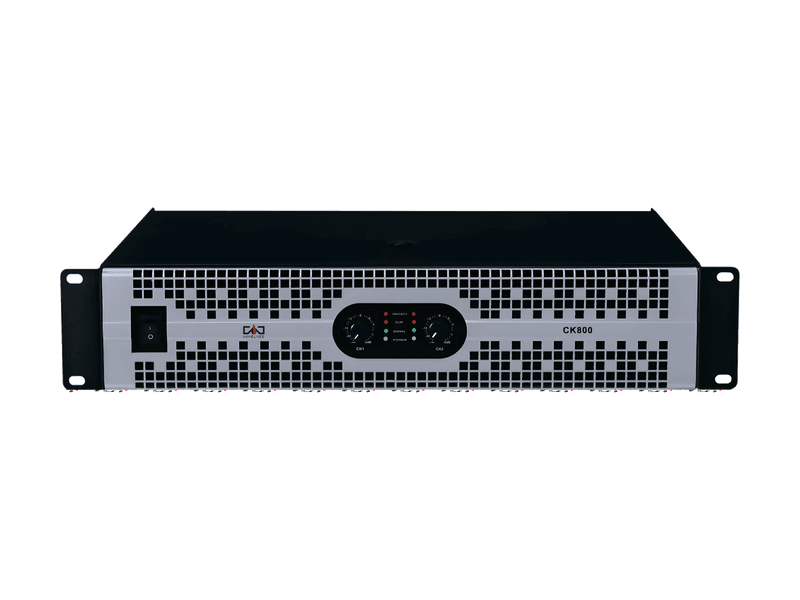

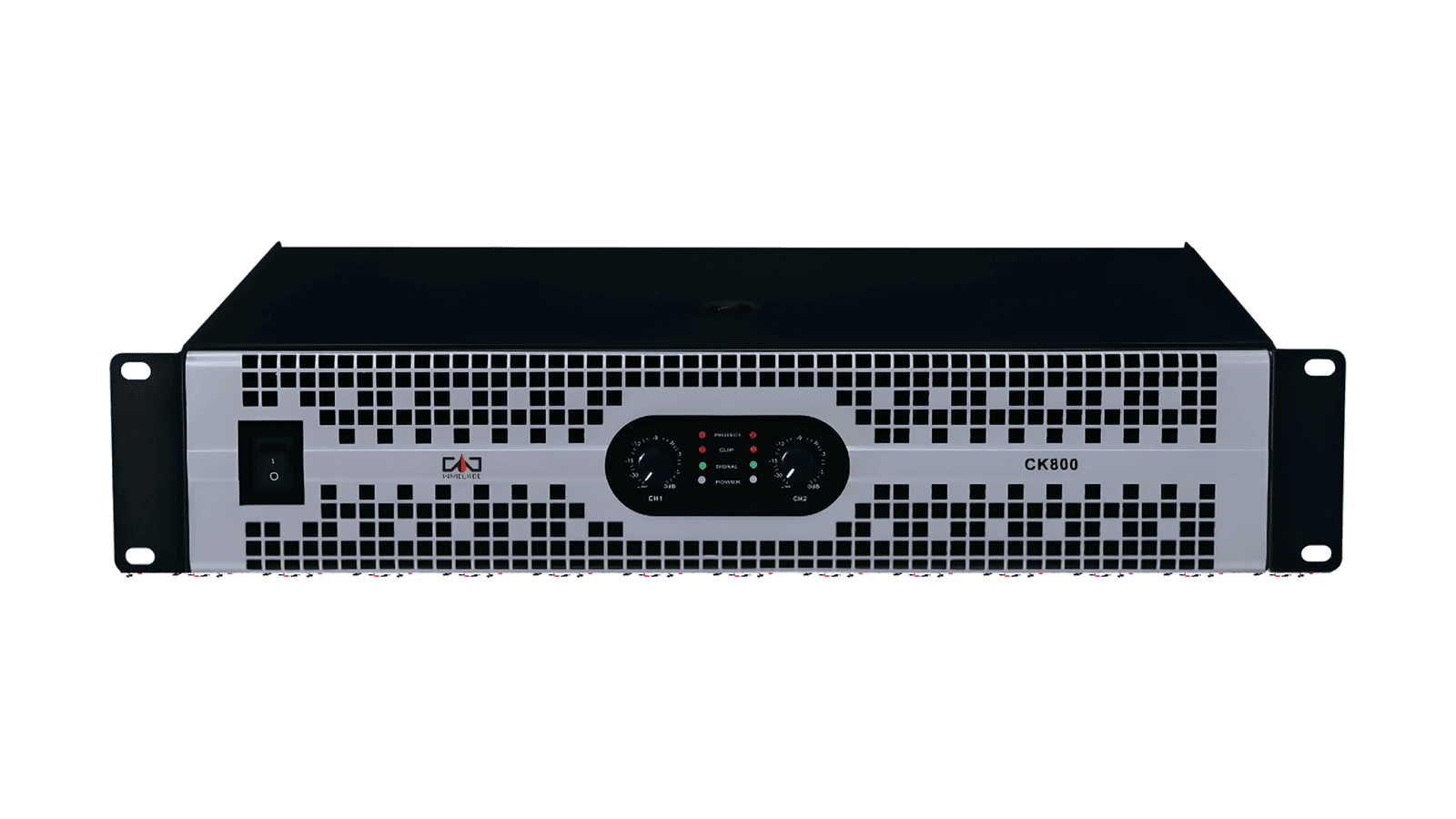

CK800 Professional Mono Power Amplifier

Model code: MK-CK800

800 W into 8 Ω, 1250 W into 4 Ω, 2500 W bridged, in a 17 kg 2U chassis with a ≥400 damping factor and <0.01% THD+N.

800 W into 8 Ω, 1250 W into 4 Ω, 2500 W bridged
Damping factor ≥400 at 8 Ω, 30 V/us slew rate, ≥80 dB channel separation
THD+N <0.01% at 8 Ω / 1 kHz, signal to noise ratio ≥110 dB
2U chassis 89 × 483 × 369.5 mm, 17 kg, DC / short circuit / over temperature / soft start protection

PricePrice on request

We sell by quotation: send us the models and the quantities and you will receive a proforma invoice including freight within one business day.

Quoted per order

Technical specifications

Output

Channels: 1
Power per channel at 8 Ohm: 800 W
Power per channel at 4 Ohm: 1250 W
Bridged output: 2500 W

Measured performance

THD + N: 0.01 %
Signal to noise ratio: 110 dB
Damping factor: 400
Frequency response: 20 Hz – 20 kHz +0/-0.5dB

Connectivity

Input sensitivity: 0.775V
Input impedance: 20 kΩ balanced / 10 kΩ unbalanced

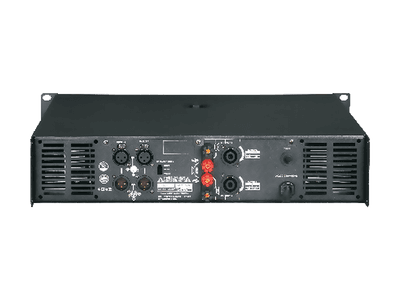

Inputs: 1 × XLR balanced input + 1 × XLR link out
Outputs: 1 × speakON NL4 + binding posts

Mechanical

Protection: DC, short circuit, over temperature, soft start
Rack height: 2 U
Dimensions: 89 × 483 × 369.5 mm
Net weight: 17 kg

Overview

CK800 Professional Mono Power Amplifier

The CK series is mono. One channel per chassis covers 450, 600, 800 and 1000 W at 8 Ω, with up to 3000 W bridged on the CK1000, which makes the series a natural fit for subwoofer duty or for racks that prefer one amplifier per cabinet.

The chassis is the shallowest in the range at 369.5 mm deep and the lightest at 15 to 18.5 kg, still 2U high. Signal to noise stays at ≥110 dB and separation at ≥80 dB; the damping factor is ≥400 at 8 Ω and the slew rate 30 V/us.

THD+N is below 0.01% at 8 Ω / 1 kHz on the three larger models and below 0.05% on the CK450, with the same DC, short circuit, over temperature and soft start protection as the rest of the catalogue.

The CK800 is one of the power steps of the series: 800 w into 8 ω, 1250 w into 4 ω, 2500 w bridged, 17 kg in a 2U chassis measuring 89 × 483 × 369.5 mm. It shares the circuit, the protection design and the measured performance of the rest of the CK Series, so the choice inside a series comes down to output power and chassis height.

Power ratings follow the EIA standard and are measured with a 40 ms pulse of a 1 kHz sine wave at 1% total harmonic distortion.

MaikeAudio keeps the right to explain the parameters above. Specifications can change without notice; the manual shipped with the product is the authoritative version.
